Electric scissors are widely used in gardening, fruit forest pruning, cutting, picking and other occasions. Cmsemicon has launched a cost-effective electric scissors main control board and blade position detection board with few peripheral components to provide a complete solution.

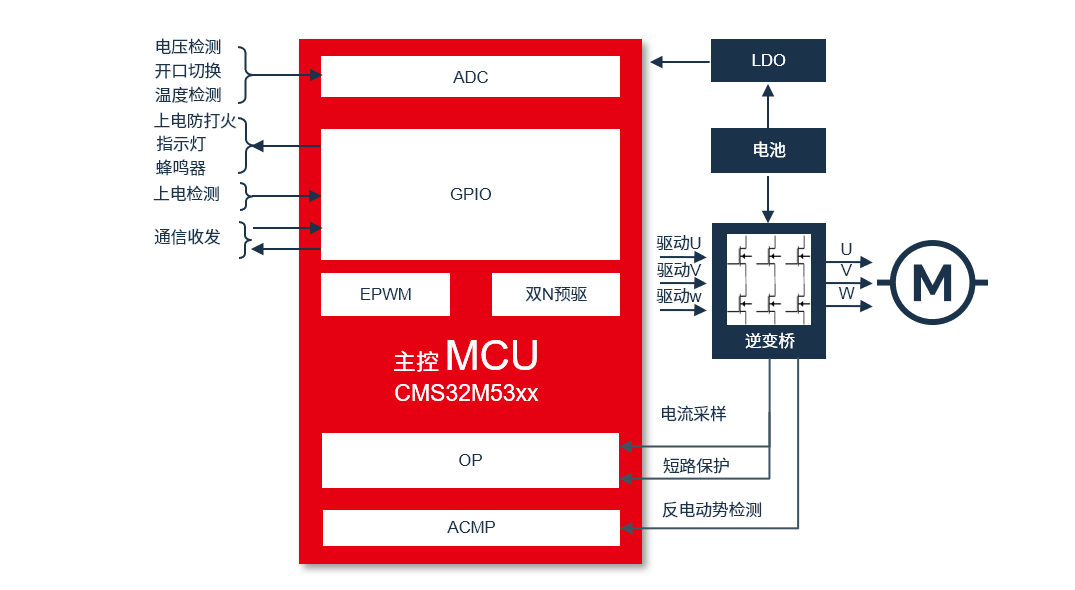

CMS32M53xx electric scissors program performance characteristics:
> Built-in 12-bit ADC, multi-channel operational amplifier, PGA, N+N drive, simplifying the peripheral circuit
> Optimized sensorless startup algorithm, 100% startup success
> Motor position tracking algorithm, position speed curve algorithm, comfortable hand feeling, position torque following
> The algorithm realizes that the opening or closing position can be set at any position, without relying on the hall position
> Double-click the trigger to turn on, fast switching of openings, locked-rotor rebound, zero-current sleep
> With opening fast switching, power display, automatic standby and hibernation, anti-cutting hands
> With input over-voltage and under-voltage protection, over-current protection, over-temperature protection, phase-to-phase short-circuit protection, phase loss protection, locked-rotor protection and other protection functions

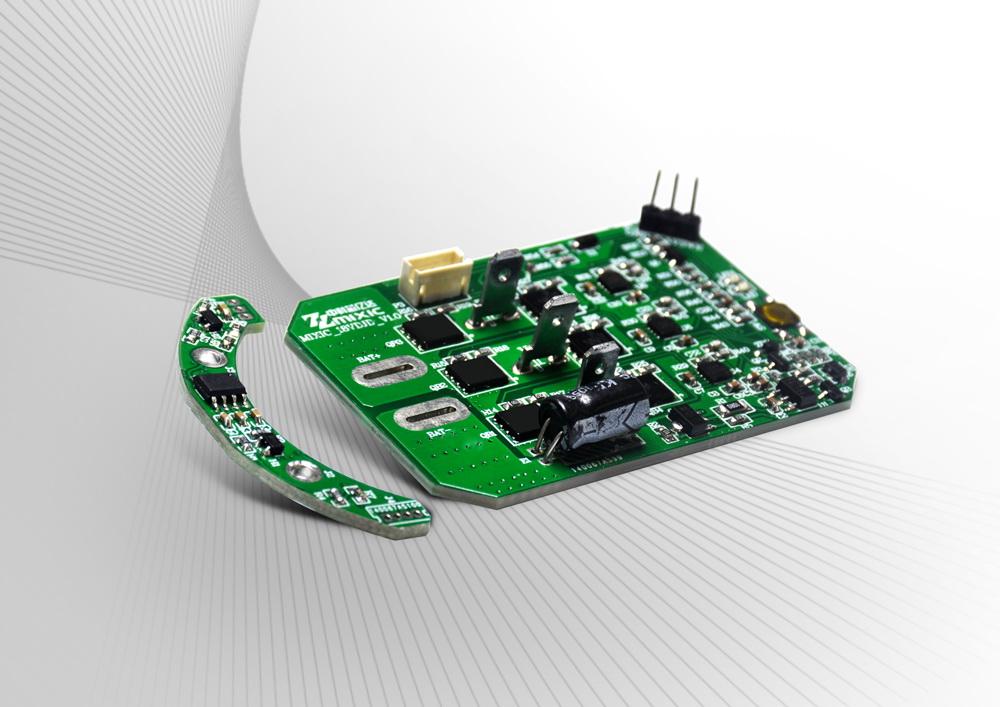

|Electric Scissors Development Kit||
The electric scissors development kit is a development board for the electric scissors program developed by CMS32M5333. It supports non-inductive BLDC control and has low speed and high torque. This kit provides an ideal evaluation environment for developers and supports the development of electric scissors for users. The CMS32M5333 main control chip used in this development board has two operational amplifiers, two PGAs, multiple comparators, and multiple high-precision 12-bit ADCs.
