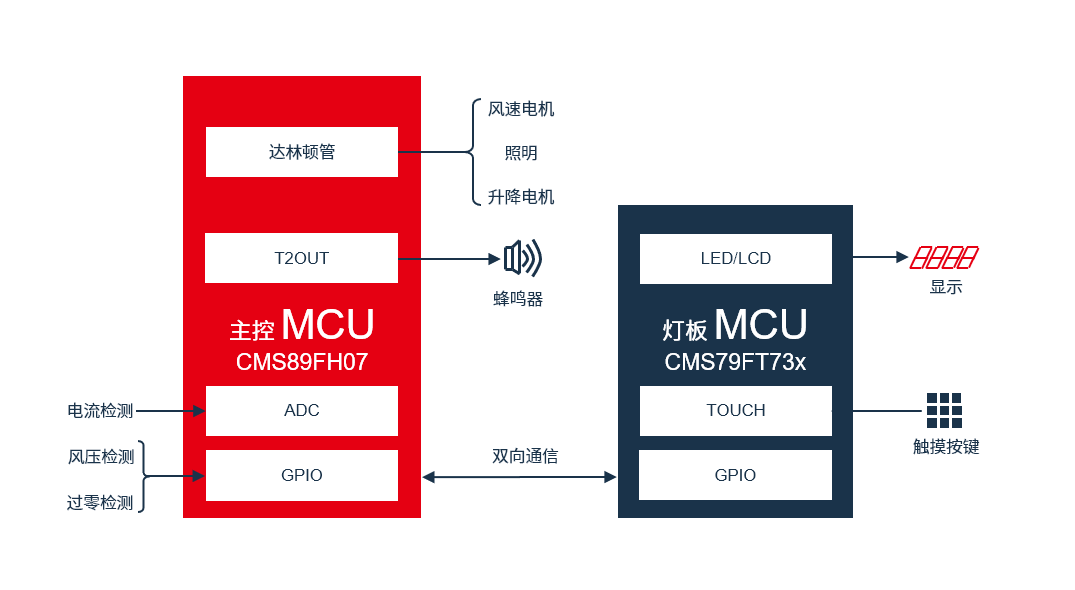

With the improvement of the quality of life, the consumer's pursuit of the use experience and appearance of the range hood has become more and more high-end. The traditional range hood scheme is obviously unable to meet the demand. Under such a general trend, Cmsemicon timely introduced an original new hood solution. The program uses the CMS79FT73x + CMS89FH07 dual chip mode. The CMS79FT73x series is Cmsemicon's new generation SICC touch chip, with high sensitivity and high response speed, which can easily challenge EMC testing. CMS89FH07 uses Cmsemicon patented technology, built-in multi-channel darlington driver, IO port can directly drive relays, stepping motors and other loads.
> Built-in 7-channel Darlington driver, IO port directly drives relays and stepping motors, saving components and simple wiring
> TMR2 matching output T2OUT, adjustable frequency, easy to realize the beeper beautiful tone drive
> SICC new generation touch technology, high signal-to-noise ratio, high sensitivity, high response speed
> Support up to 16 touch buttons, all pins can be configured as touch channels
> No need for external touch capacitors, saving components and simple wiring
> Easy to pass 10V dynamic and static CS, CE (conducted disturbance), RE (space radiation)
> High EFT, ESD performance
> Provide a variety of assembly/C language touch library, simple and efficient development, to meet diverse needs
> Built-in LED/LCD drive module, saving peripheral components
|Touch Development Kit||
The 4KEY touch development kit is a touch solution development board developed by CMS79FT738, which can support 4KEY touch buttons. This kit provides developers with an ideal evaluation environment and supports the development of user touch solution devices. The development board includes 4KEY touch module, 14PIN external IO port. Connect the simulation port of the kit to a PC through the simulation port, and you can edit and debug the program in the development environment (IDE) of the CMS. The CMS79FT738 main control chip used in this development board is a new type of touch MCU, which has the characteristics of high signal-to-noise ratio, high sensitivity, high reliability, etc. It adopts brand-new patented technology to effectively solve the conduction immunity (CS) problem and excellent conduction disturbance. (CE) Performance, group.
|CMS79FT73xx-SICC built-in capacitive touch training package||1.0||
CMS79FT73xx-SICC built-in capacitive touch training package
