  • SC8P171xD

    OTP ADC type supports C chip, supports internal RC oscillation 8MHz, working voltage 2.1V-5.5V, GPIO up to 14.


    Datasheet >

    SC8P171xD is a Cmsemicon OTP ADC type chip that supports C. It supports an internal RC oscillation of 8MHz, a working voltage of 2.1V-5.5V, a maximum of 14 GPIO, built-in LVD module, WDT, LCD, PWM module, high-precision 12-bit ADC and 8-bit timer with built-in high-precision 1.2V reference voltage. Industrial standard design, can work at -40℃ to 85℃, and provide SOP8, SOP14, SOP16 packages.


    Features

    > OTP ADC chip

    > Operating voltage frequency: 3.0V-5.5V @8MHz, 2.1V-5.5V @4MHz

    > Operating temperature: -40℃-85℃

    > OTP 2K x 16Bit, 176 x 8Bit RAM

    > Support internal and oscillation mode

    > Up to 14 general-purpose GPIO

    > 12-bit high-precision ADC

    > Built-in LCD drive module

    > 2 PWM modules

    > 2 8-bit timers

    > Built-in high-precision 1.2V reference voltage

    > Built-in WDT function

    > Built-in low voltage detection function (LVD )

    > Package type: SOP8, SOP14, SOP16


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash EEPROM GPIO DMA Timer LSE WDT/WWDT RTC UART I²C SPI CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit OPA COMP PGA LCD LED Touch Encryption Other Interface
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit

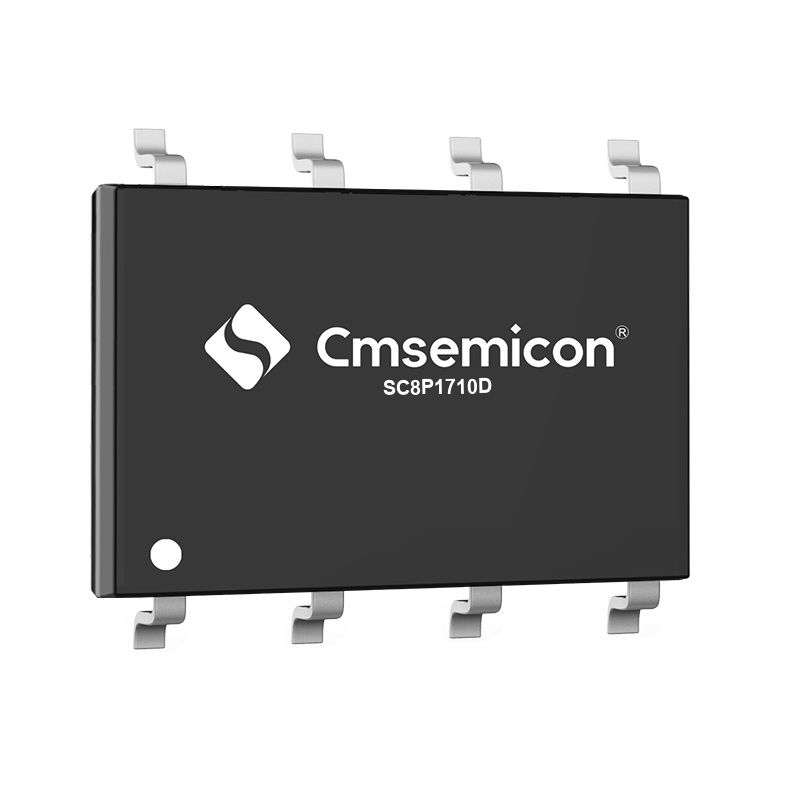

    SC8P1710D SOP8 8 RISC -40~85 2.1~5.5 OTP 2K×16 176B / / 6 / 2x8 / / / / / / / / 2 1 12 5 / / / / / /

    5com

    /

    / / /
    SC8P1711D SOP14 8 RISC -40~85 2.1~5.5 OTP 2K×16 176B / / 12 / 2x8 / / / / / / / / 2 1 12 11 / / / / / /

    11com

    /

    / / /

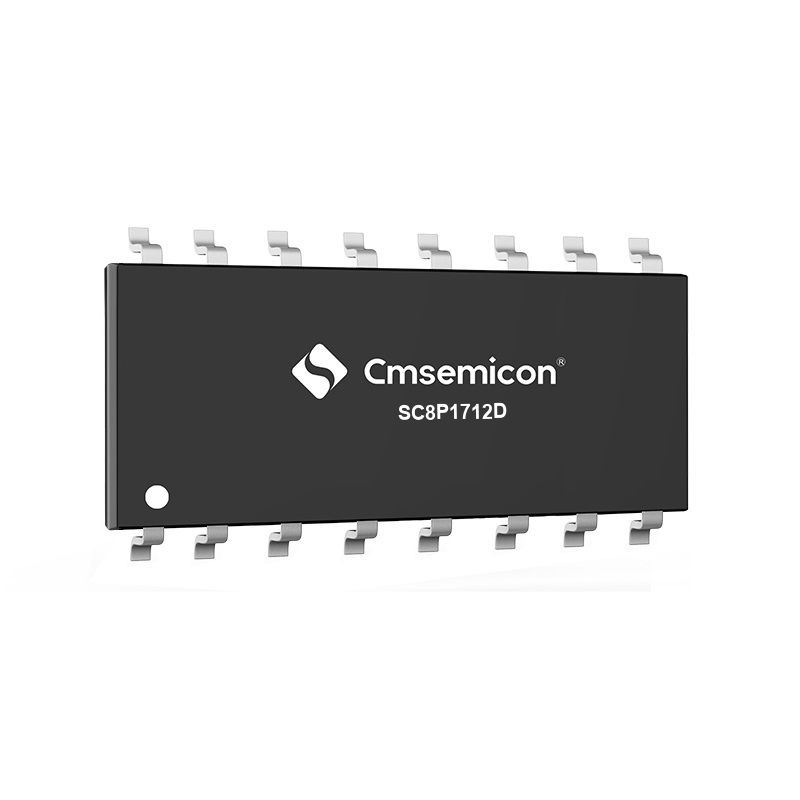

    SC8P1712D SOP16 8 RISC -40~85 2.1~5.5 OTP 2K×16 176B / / 14 / 2x8 / / / / / / / / 2 1 12 13 / / / / / /

    13com

    /

    / / /

  • Design & development

    Documentation
    Name Version Describe Download
    SC8P171xD user manual V1.3.0

    SC8P171xD modules, chip registers, clocks, storage, etc.

    Download >
