Cmsemicon has developed a complete set of cost-effective electronic scale solutions based on the high-performance and low-power CMS8H5102S series of MCUs. With its good accuracy and excellent robustness, it is convenient for customers to quickly introduce mass production.
> CMS8H5102S uses 8051 core, main frequency 24MHz, with 16KB FLASH, 256B RAM, 512B XRAM, 1KB data area
> Built-in 24-bit high-precision Sigma-Delta ADC, 12-bit ADC, UART and other functional modules
> Support LCD, digital tube LED display, support general 4*6 matrix keys
> Stable measurement data, high accuracy (40kg/1g)
> Adopt standard SOP16 package, fully guarantee product yield and reduce maintenance cost in later period
> Provide a complete set of software and hardware solutions

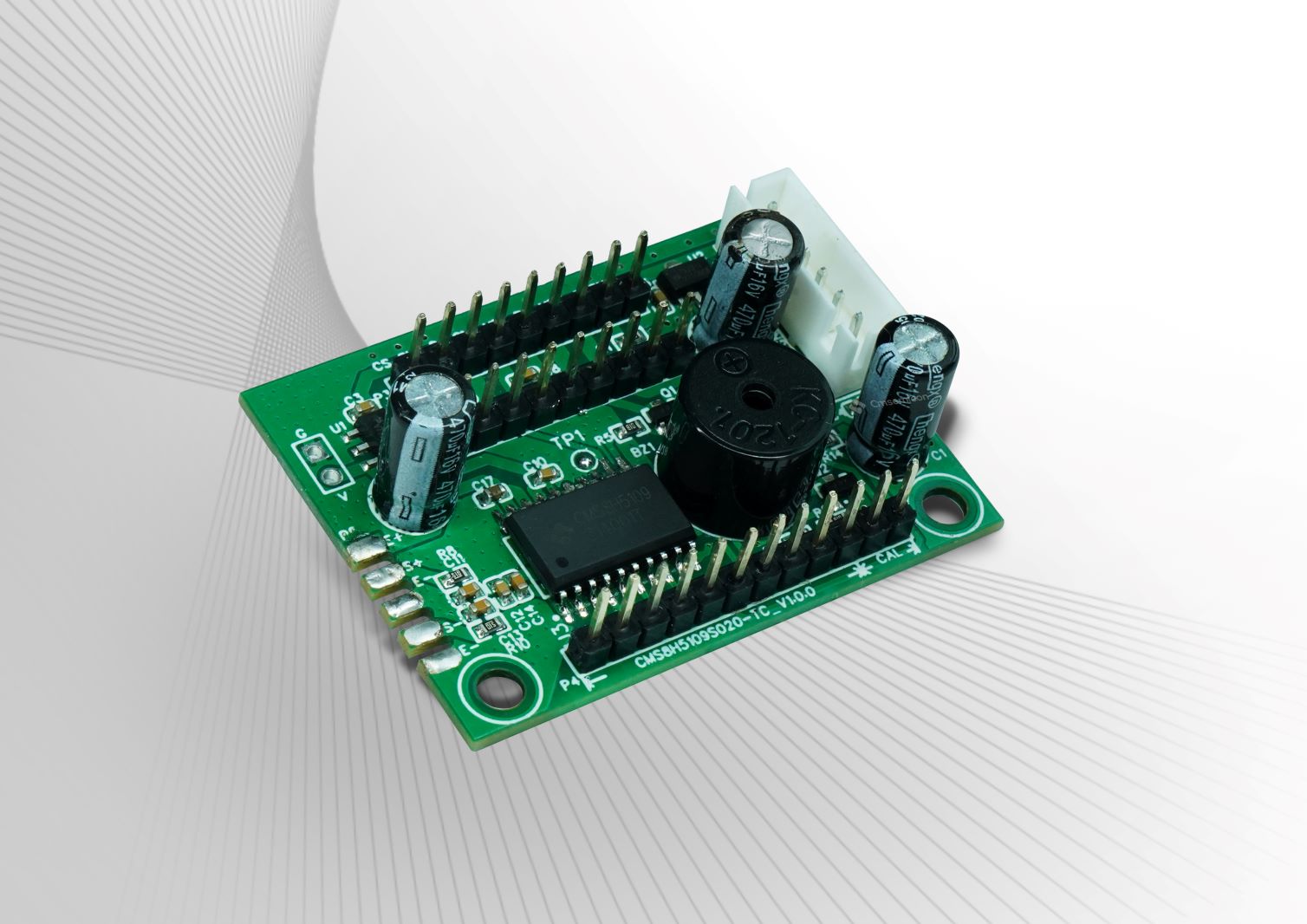

|CMS8H5109 Platform Scale Development Kit||
Use CMS8H5109 as the main control platform scale development kit, suitable for desktop platform scale development. The kit provides an ideal evaluation environment for developers and supports the development of customers' weighing products. The main control chip CMS8H5109 has a 24-bit Sigma Delta ADC, IIC communication interface, and is packaged in SOP16.
